Live traffic

A live tap receives traces from your local app and shows measurements on existing board edges. Watch local traffic with tap has prompts for request flows, intermittent errors and before/after comparisons.

Choose the right tool

You need	Ask the agent to use
Traffic while you exercise a local app	start_tap and the local helper
One request explained span by span	play_trace with an existing trace
A latency label on one connection	set_edge_latency with a measured value or explicit estimate

Start a live tap

You need Node 22 or later, an agent with edit access to the board, and an app with an OpenTelemetry trace SDK or exporter. Setting environment variables alone does not add instrumentation. Managed service accounts cannot start taps.

1. Draw the services and connections on the board.
2. Ask the agent to call start_tap for that board.
3. Have it write .redcrayon/tap.json in your project root.
4. Run the exact helper command that start_tap returns from that directory.
5. Start your instrumented app with the exporter settings below.
6. Turn on Live traffic in the board’s left rail.

Example mapping, with illustrative ids:

{
  "board": "42",
  "services": {
    "gateway": "10",
    "checkout-api": "11",
    "payments-api": "12"
  }
}

Replace the board and node ids with the ones your agent draws. Each key must match the resource’s service.name, not a hostname, route or display label. The helper rereads this file after edits, so you can correct mappings without restarting it.

The returned command includes a board-scoped token:

npx -y @redcrayonai/draw@1 tap --token 'TOKEN_FROM_START_TAP'

The token lasts 12 hours. Keep it out of committed files and shared logs. One tap can connect to a board at a time.

Configure an instrumented service

For an SDK that supports environment settings, use these in the shell that starts checkout-api:

export OTEL_SERVICE_NAME=checkout-api
export OTEL_EXPORTER_OTLP_TRACES_ENDPOINT=http://127.0.0.1:4318/v1/traces
export OTEL_EXPORTER_OTLP_TRACES_PROTOCOL=http/protobuf

Use gateway and payments-api as the service names in the other two processes. Start each process with its usual command. Trace-specific settings leave your metrics and logs endpoints unchanged. Environment support varies by SDK. See OpenTelemetry exporter settings.

The receiver accepts OTLP over HTTP, not gRPC, at /v1/traces. It supports protobuf and JSON. The general OTEL_EXPORTER_OTLP_ENDPOINT uses the base URL http://127.0.0.1:4318; a trace-specific endpoint includes /v1/traces as shown above.

Run the services and helper on the same host for this recipe. The helper binds to loopback only. Inside a container, 127.0.0.1 points to that container, so a containerized exporter needs networking that reaches the helper’s loopback listener.

Send a synthetic test request

First start the tap, map gateway and checkout-api, draw a connection between their nodes, and switch on Live. Save tap-smoke.json as tap-smoke.json in your working directory. Then run:

curl --fail --show-error \
  -H 'Content-Type: application/json' \
  --data-binary @tap-smoke.json \
  http://127.0.0.1:4318/v1/traces

This sends two synthetic parent/child spans. The expected result is one gateway → checkout-api sample with a 64 ms child duration and no errors. The receiver answers {}. Hover the drawn connection to inspect the live values. Run the command again to produce another window. To simulate an error, change the checkout span’s status.code from 1 to 2 and resend it. These are test values, not app measurements.

Read the result

The helper summarizes cross-service parent/child spans about once a second. The board matches their node pairs to drawn connections. Hover a node or edge for request rate, median (p50) latency and errors. Latency is the child span’s duration as the receiving service observed it, not an independent measurement of network time.

Both services must export related spans to the tap. Same-service spans do not create hops. A database client span inside checkout-api does not create a separate Redis hop from its attributes. Trace context must propagate between services. See context propagation.

Sampling and export batching affect what arrives. Old live values clear after about three seconds without a new window. The live channel stores no history. Use a chart or your tracing system to keep a comparison.

The helper computes p95 and maximum durations too, but current edge labels show p50. Use your tracing tool for a tail-latency analysis. With edit access, Pin as latency saves the latest median on each observed edge as a local measurement. It remains after Live is off, without saving rates or a history.

This local capture uses the synthetic smoke-test payload and a simulated channel.

If nothing moves

Symptom	What to check
No live source	Start the helper with a fresh start_tap token for this board.
Tap waits for a viewer	Open the same board and turn on Live traffic.
Receiver gets no traces	Check SDK setup, HTTP protocol, endpoint path and the app’s network.
Unmapped services	Match names in the helper’s periodic log to keys in tap.json.
Spans arrive but no hop appears	Check parent/child context, export from both services, their node ids and the drawn edge.
Port 4318 is busy	Add --port 4320 to the helper command and use port 4320 in the exporter endpoint.
Another tap is already live	Stop that helper before starting a replacement.
Token expires or access ends	Ask the agent for a new token and restart the helper after restoring access.

What leaves your machine

The helper drops span names and attributes locally. It sends node pairs, counts, error counts and latency summaries only while at least one viewer has Live on. Raw trace bodies do not leave your machine through the tap. Code snippet consent is a separate setting. Stopping every viewer pauses summary transmission; stopping the helper also closes the local receiver.

Replay one request

For an existing production or local trace, ask:

Replay the slowest checkout trace from the last hour on the board. Use measured timings and mark error spans.

The agent needs access to that trace through another tool. play_trace sends only span ids, node ids, parent relationships, timings and status. It does not start a local tap. set_edge_latency marks values as prod, local or estimate.

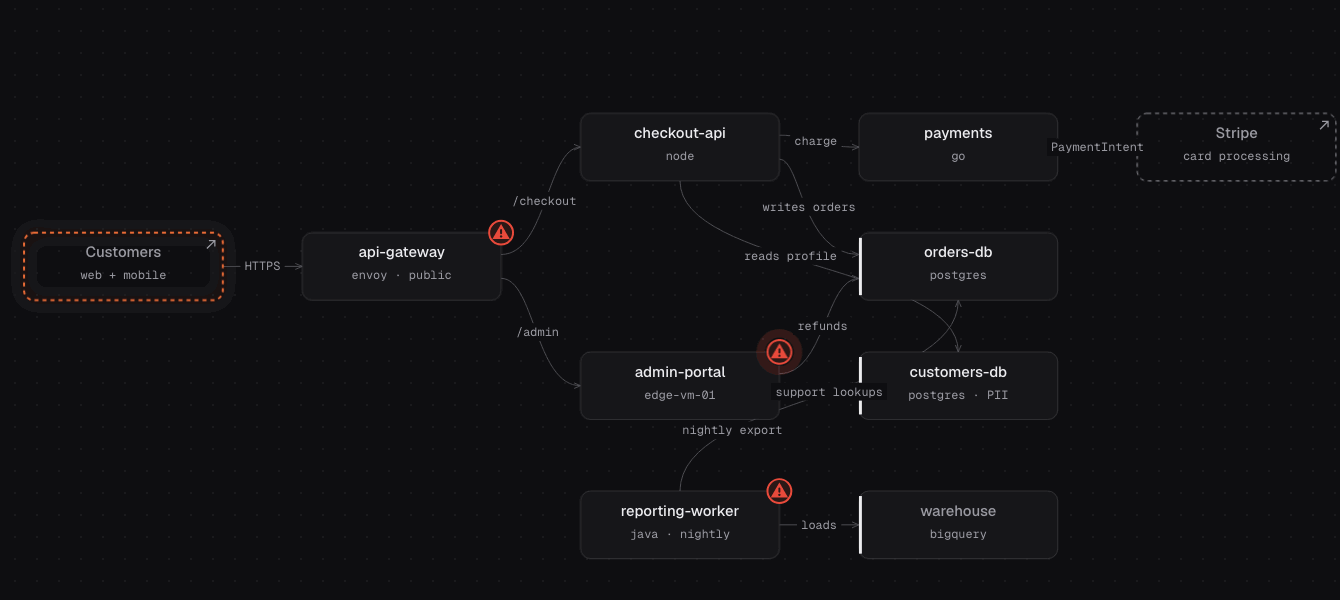

This animation shows a single-trace replay, not a live tap. Tools: set_edge_latency, play_trace, start_tap.
